Linux 源码解析网络编程-listen
listen()
int listen(int sockfd, int backlog);
作用：监听套接字上的链接 @sockfd 引用SOCK_STREAM/SOCK_SEQPACKET类型套接字的文件描述符 @backlog 挂起连接的队列的最大长度, ***ddos攻击有关
linux 内核源码
/*
* Perform a listen. Basically, we allow the protocol to do anything
* necessary for a listen, and if that works, we mark the socket as
* ready for listening.
*/
SYSCALL_DEFINE2(listen, int, fd, int, backlog)
{
struct socket *sock;
int err, fput_needed;
int somaxconn;
//通过文件描述符fd查找对应的socket
sock = sockfd_lookup_light(fd, &err, &fput_needed);
if (sock) {
//backlog参数不能超过系统参数somaxconn
somaxconn = sock_net(sock->sk)->core.sysctl_somaxconn;
if ((unsigned int)backlog > somaxconn)
backlog = somaxconn;
err = security_socket_listen(sock, backlog);
if (!err)
//socket层的操作，如果是SOCK_STREAM,接下来是inet_listen()
err = sock->ops->listen(sock, backlog);
fput_light(sock->file, fput_needed);
}
return err;
}
struct sock {
unsigned short sk_ack_backlog; current listen backlog
unsigned short sk_max_ack_backlog; listen backlog set in listen()
}
//SOCK_STREAM 套接字的socket层操作函数实例为inet_stream_ops, 位于/net/ipv4/af_inet.c
const struct proto_ops inet_stream_ops = {
...
.family = PF_INET,
.bind = inet_bind,
.accept = inet_accept,
.listen = inet_listen,
...
}
/*
* Move a socket into listening state.
*/
//net/ipv4/af_inet.c
int inet_listen(struct socket *sock, int backlog)
{
struct sock *sk = sock->sk;
unsigned char old_state;
int err;
lock_sock(sk);
err = -EINVAL;
//套接字状态需要为SS_UNCONNECTED,类型需要为SOCK_STREAM
if (sock->state != SS_UNCONNECTED || sock->type != SOCK_STREAM)
goto out;
old_state = sk->sk_state;
if (!((1 << old_state) & (TCPF_CLOSE | TCPF_LISTEN)))
goto out;
/* Really, if the socket is already in listen state
* we can only allow the backlog to be adjusted.
*/
if (old_state != TCP_LISTEN) {
err = inet_csk_listen_start(sk, backlog);
if (err)
goto out;
}
sk->sk_max_ack_backlog = backlog;
err = 0;
out:
release_sock(sk);
return err;
}
//net/ipv4/inet_connection_sock.c
int inet_csk_listen_start(struct sock *sk, const int nr_table_entries)
{
struct inet_sock *inet = inet_sk(sk);
struct inet_connection_sock *icsk = inet_csk(sk);
//创建request_sock_queue请求socket队列管理实例，初始化全连接队列，创建半连接管理实例
int rc = reqsk_queue_alloc(&icsk->icsk_accept_queue, nr_table_entries);
if (rc != 0)
return rc;
sk->sk_max_ack_backlog = 0;
sk->sk_ack_backlog = 0;
inet_csk_delack_init(sk);
/* There is race window here: we announce ourselves listening,
* but this transition is still not validated by get_port().
* It is OK, because this socket enters to hash table only
* after validation is complete.
*/
//设置socket状态为TCP_LISTEN
sk->sk_state = TCP_LISTEN;
//检测端口是否可用，防止bind后其他进程修改端口信息
if (!sk->sk_prot->get_port(sk, inet->inet_num)) {
inet->inet_sport = htons(inet->inet_num);
sk_dst_reset(sk);
sk->sk_prot->hash(sk); //把sock连接放入监听哈希表
return 0;
}
sk->sk_state = TCP_CLOSE;
__reqsk_queue_destroy(&icsk->icsk_accept_queue);
return -EADDRINUSE;
}
/*
* Maximum number of SYN_RECV sockets in queue per LISTEN socket.
* One SYN_RECV socket costs about 80bytes on a 32bit machine.
* It would be better to replace it with a global counter for all sockets
* but then some measure against one socket starving all other sockets
* would be needed.
*
* The minimum value of it is 128. Experiments with real servers show that
* it is absolutely not enough even at 100conn/sec. 256 cures most
* of problems.
* This value is adjusted to 128 for low memory machines,
* and it will increase in proportion to the memory of machine.
* Note : Dont forget somaxconn that may limit backlog too.
*/
int sysctl_max_syn_backlog = 256;
EXPORT_SYMBOL(sysctl_max_syn_backlog);
//net/core/request_sock.c
//@queue 连接请求控制
//@nr_table_entries 半连接最大个数
int reqsk_queue_alloc(struct request_sock_queue *queue,unsigned int nr_table_entries)
{
size_t lopt_size = sizeof(struct listen_sock);
struct listen_sock *lopt;
//nr_table_entries 必须在[8,sysctl_max_syn_backlog]之间，默认[8,256]
//但是，在listen入口时确定了backlog<=sysctl_somaxconn(默认128)
//所以此时默认区间是[8,128]
nr_table_entries = min_t(u32, nr_table_entries, sysctl_max_syn_backlog);
nr_table_entries = max_t(u32, nr_table_entries, 8);
//使nr_table_entries=2^n,向上取整
nr_table_entries = roundup_pow_of_two(nr_table_entries + 1);
lopt_size += nr_table_entries * sizeof(struct request_sock *);
if (lopt_size > PAGE_SIZE)
lopt = vzalloc(lopt_size);
else
lopt = kzalloc(lopt_size, GFP_KERNEL);
if (lopt == NULL)
return -ENOMEM;
for (lopt->max_qlen_log = 3;
(1 << lopt->max_qlen_log) < nr_table_entries;
lopt->max_qlen_log++);
get_random_bytes(&lopt->hash_rnd, sizeof(lopt->hash_rnd));
rwlock_init(&queue->syn_wait_lock);
queue->rskq_accept_head = NULL; //全连接队列置空
lopt->nr_table_entries = nr_table_entries; //半连接队列最大长度
write_lock_bh(&queue->syn_wait_lock);
queue->listen_opt = lopt;
write_unlock_bh(&queue->syn_wait_lock);
return 0;
}
//用于保存SYN_RECV状态的连接，所以也叫半连接队列
struct listen_sock {
u8 max_qlen_log;
u8 synflood_warned;
/* 2 bytes hole, try to use */
int qlen;
int qlen_young;
int clock_hand;
u32 hash_rnd;
u32 nr_table_entries; //监听client返回syn队列最大长度
struct request_sock *syn_table[0]; //半连接队列
};
/** struct request_sock_queue - queue of request_socks
*
* @rskq_accept_head - FIFO head of established children
* @rskq_accept_tail - FIFO tail of established children
* @rskq_defer_accept - User waits for some data after accept()
* @syn_wait_lock - serializer
*
* %syn_wait_lock is necessary only to avoid proc interface having to grab the main
* lock sock while browsing the listening hash (otherwise it's deadlock prone).
*
* This lock is acquired in read mode only from listening_get_next() seq_file
* op and it's acquired in write mode _only_ from code that is actively
* changing rskq_accept_head. All readers that are holding the master sock lock
* don't need to grab this lock in read mode too as rskq_accept_head. writes
* are always protected from the main sock lock.
*/
//sock队列描述
struct request_sock_queue {
struct request_sock *rskq_accept_head; //全连接头
struct request_sock *rskq_accept_tail; //全连接尾
rwlock_t syn_wait_lock;
u8 rskq_defer_accept;
/* 3 bytes hole, try to pack */
struct listen_sock *listen_opt;
};

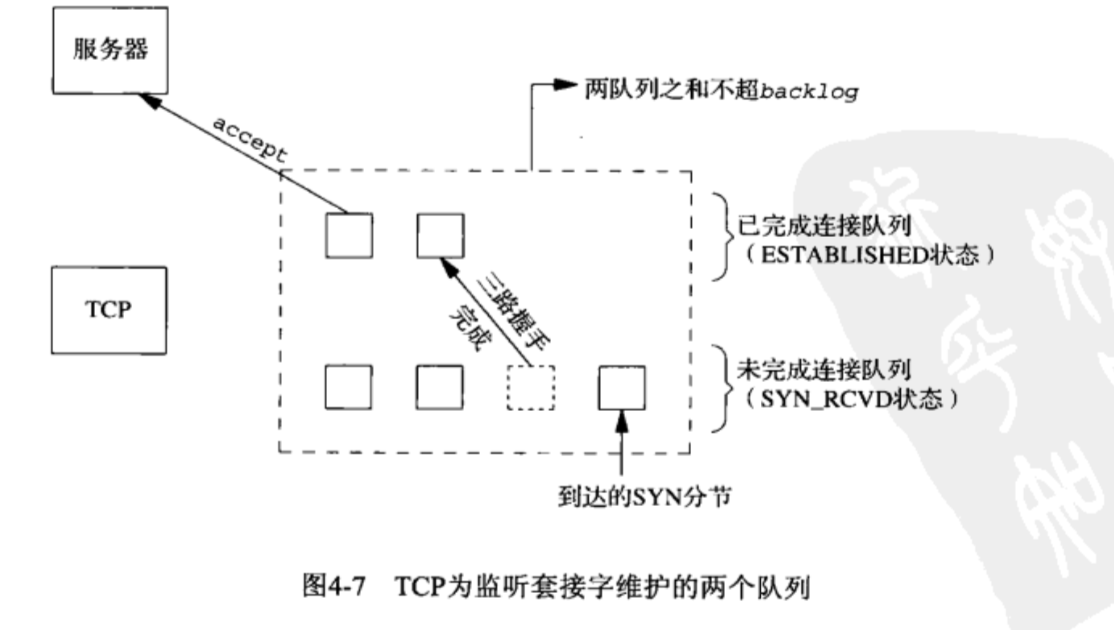

内核维护监听套接字的两个队列
- 1.半连接队列，装载客户端发送SYN同步分节到达服务器，服务器正在等待TCP3路握手完成的sock数据，sock的状态为SYN_RCV状态
- 2.全连接队列，装载完成TCP3路握手的sock数据，sock状态为ESTABLISHED，该sock数据从半连接队列复制到全连接队列
- 3.accept阻塞等待3路握手完成或63s超时返回，建立连接后从全连接队列取出头结点，返回新的sockfd供应用层读写。
- 4.backlog参数linux3.6源码取值范围是[8,128]，允许修改宏设置最大值，TODO 待验证。如果队列满了，再链接的客户端会收到connect refused的错误码，导致客户端重连。
- 5.SYN Flood攻击，DDOS攻击，就是客户端发送大量SYN，伪造源地址，或者直接下线，服务器会默认等待63s才会断开，这样攻击者就可以把服务器的syn连接队列耗尽，让正常连接请求不能处理。
